Multiphysics Simulation of Coal Powder Press Machine

INDUSTRY

Industrial Machinery/ Manufacturing Engineering

CLIENT TYPE

Industrial equipment manufacturer

Service Provided:

Multiphysics simulation and performance analysis

OBJECTIVE

Evaluate mechanical compression and airflow interaction within a coal powder press system

ENGINEERING METHOD

Fluid-Structure Interaction (FSI) simulation

SIMULATION APPROACH

Segregated Multiphysics modeling using COMSOL Multiphysics

CORE FO

Coupled analysis of mechanical deformation and airflow behavior

At AWJ Engineering, our team modeled a coal powder press machine using a segregated approach integrated with Fluid-Structure Interaction (FSI) Multiphysics. The simulation captured a high-strength ceramic ball (radius 0.6 mm) compressed between two coal blocks, with simultaneous airflow entering from one side and exiting the other – providing precise insights into mechanical and fluid dynamics under operational conditions.

This project exemplifies our advanced capabilities in coupled simulations for industrial machinery optimization.

For more on boundary conditions, solver settings, or similar analyses, contact us today.

The Client

The client was working on the design and optimization of a coal powder press machine, a piece of industrial equipment used to compress coal powder into compact forms for handling, transport, or further processing. Machines operating in powder-processing environments must withstand high mechanical forces while maintaining stable airflow conditions that support operational efficiency and material consistency. The client required a deeper understanding of how mechanical compression and airflow dynamics interact during the pressing process, particularly in areas where stress concentrations and airflow forces could influence machine performance. To achieve this, the client sought simulation-driven insights that could help evaluate the machine’s operational behavior under realistic working conditions.

The Challenge

Coal powder compression systems involve several physical interacting phenomena that can affect performance and durability.

Key challenges included:

understanding stress distribution during the compression process
evaluating how airflow influences mechanical interactions
predicting deformation in contact regions under high pressure
ensuring stable operation during simultaneous mechanical and fluid interactions

Traditional mechanical analysis alone cannot fully capture these interactions, as airflow behavior can influence pressure distribution and system stability.

The client therefore required a coupled simulation approach capable of modeling both structural mechanics and fluid dynamics simultaneously.

Engineering Challenge

The primary engineering challenge was to develop a computational model capable of accurately representing the coupled interaction between solid structures and airflow within the machine.

Key modeling requirements included:

simulating high-pressure compression between coal blocks
accurately representing the contact interaction with a ceramic ball
capturing airflow movement through the system during compression
ensuring stable numerical performance for Multiphysics coupling

Because both structural deformation and fluid flow influence the system simultaneously, the simulation needed to incorporate Fluid-Structure Interaction (FSI) modeling to ensure accurate representation of real operational behavior.

Our Approach

AWJ Engineering implemented a structured simulation and validation workflow to address the client’s modeling challenges.

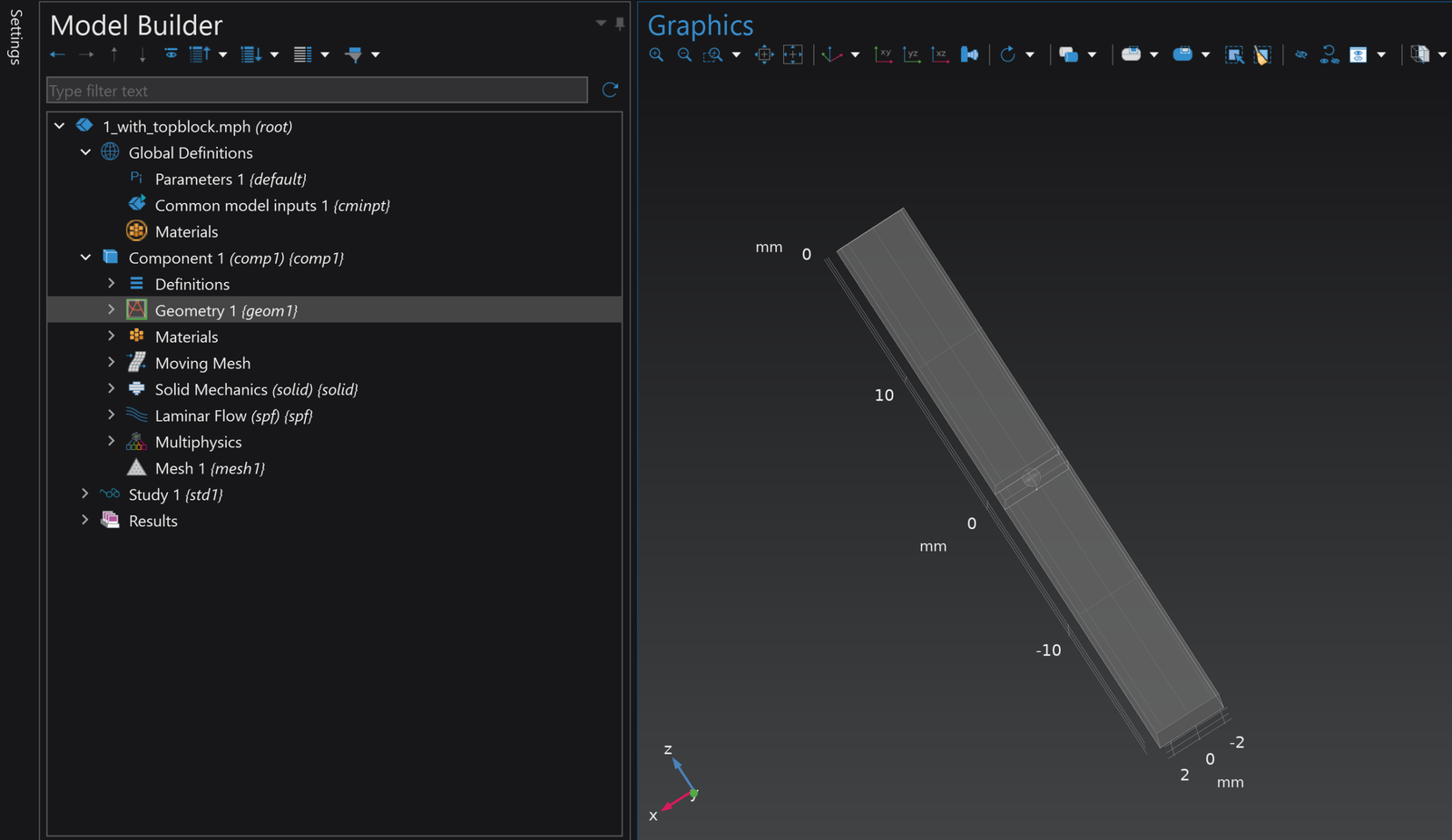

System Geometry Modeling

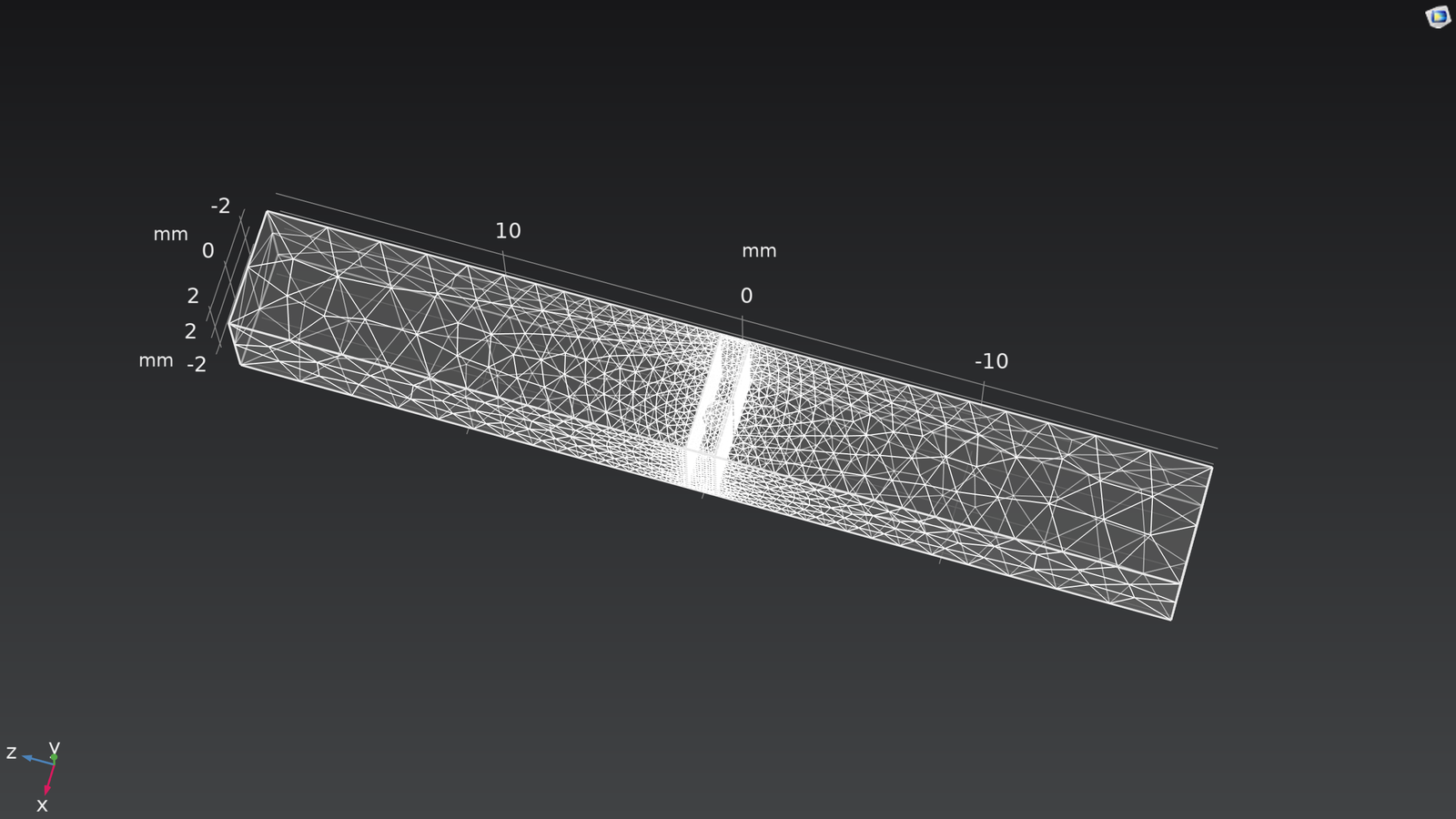

The simulation model included a high-strength ceramic ball with a radius of 0.6 mm positioned between two coal blocks, representing the contact region within the press system.

This configuration allowed engineers to study how compression forces interact with the material under realistic operating conditions.

Multiphysics Simulation Framework

To accurately capture system behavior, the simulation incorporated Fluid-Structure Interaction (FSI) modeling.

This approach enabled the simultaneous evaluation of:

structural deformation
contact forces
airflow movement through the system

Segregated Solver Strategy

A segregated Multiphysics approach was used to manage the complex interactions between the different physical domains.

This method allowed structural and fluid calculations to be solved iteratively while maintaining numerical stability and computational efficiency.

Airflow Simulation

Airflow was introduced into the simulation with inlet flow entering one side of the system and exiting through the opposite side.

This setup replicated the operational conditions of the press machine and allowed engineers to observe how airflow interacts with the compression process.

Coupled Analysis

By coupling structural mechanics with fluid dynamics, the simulation provided detailed insights into the interaction between airflow forces and mechanical compression.

This enabled the engineering team to analyze how operational conditions influence both structural stress and airflow behavior within the machine.

The Solution

Using advanced Multiphysics simulation, AWJ Engineering developed a detailed computational model of the coal powder press machine’s core compression region.

The simulation allowed engineers to evaluate:

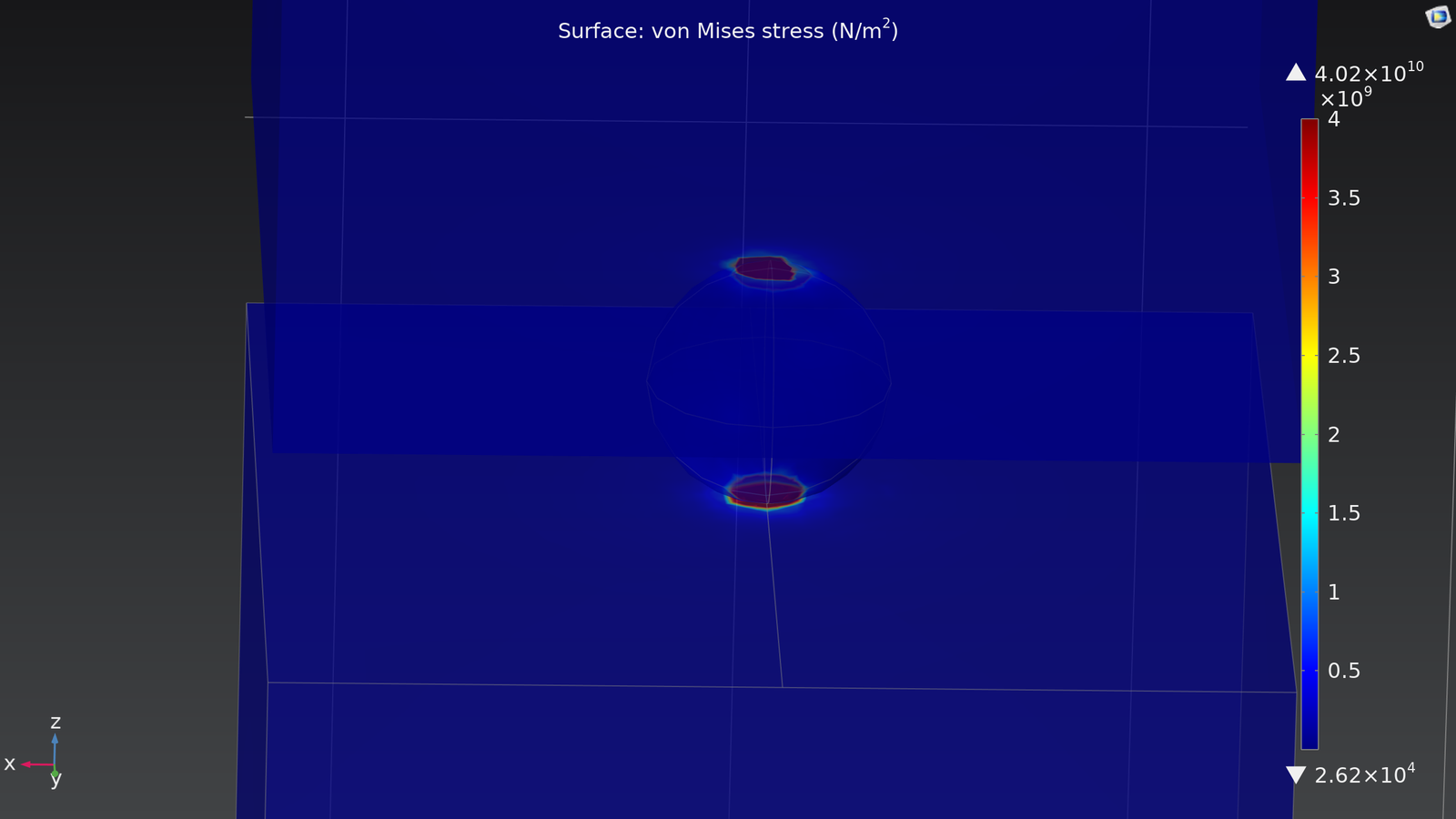

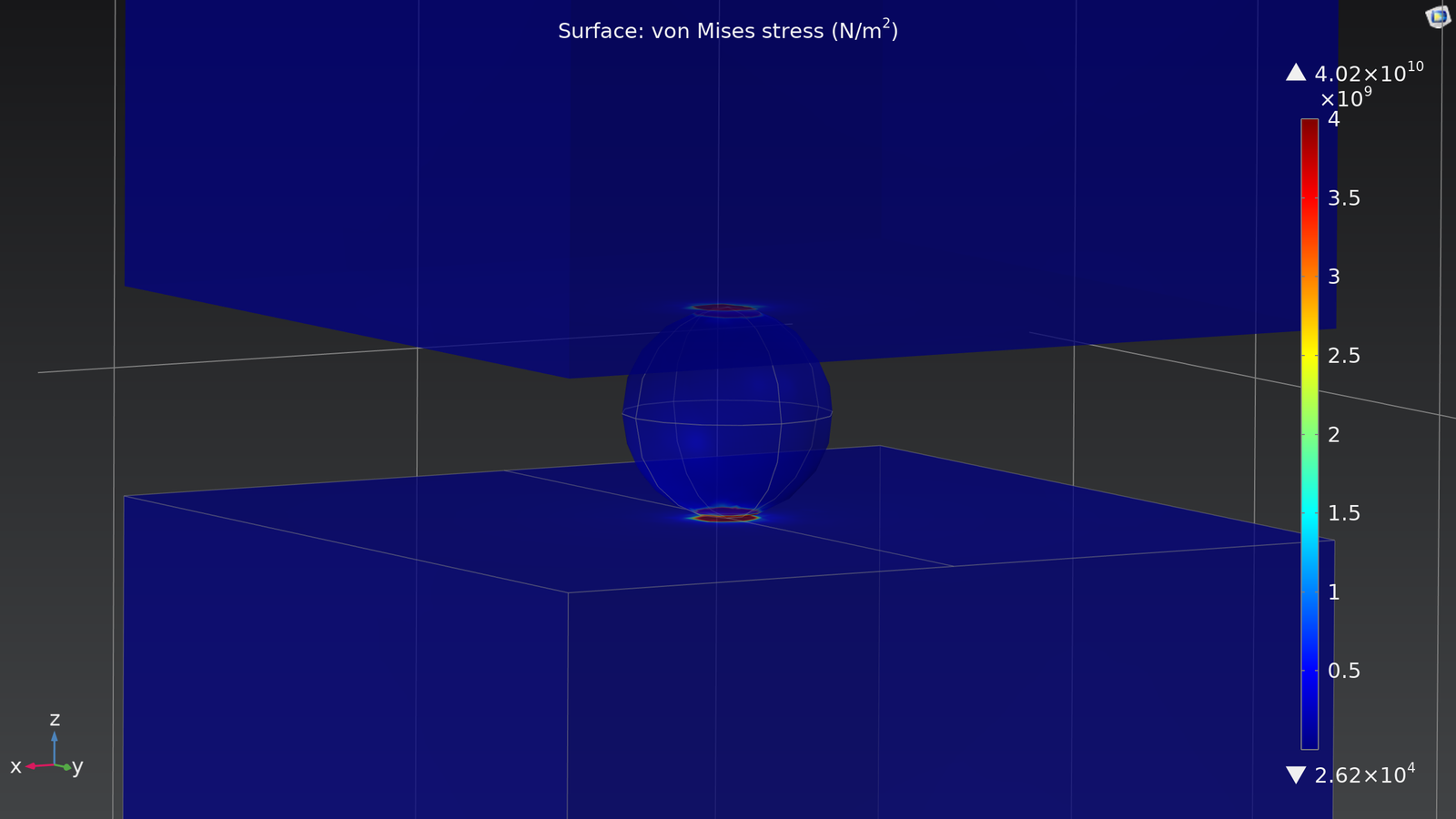

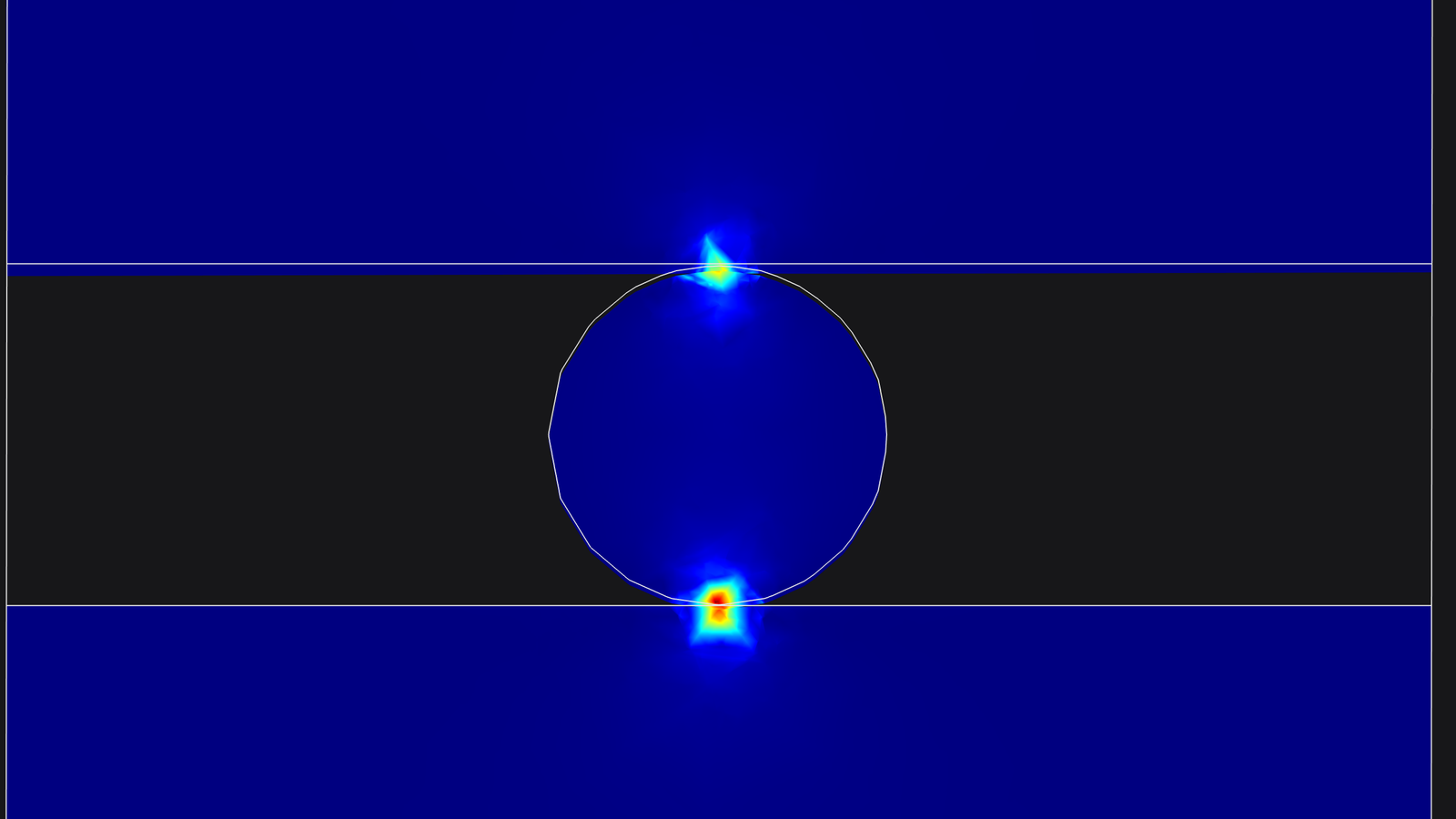

stress distribution during compression

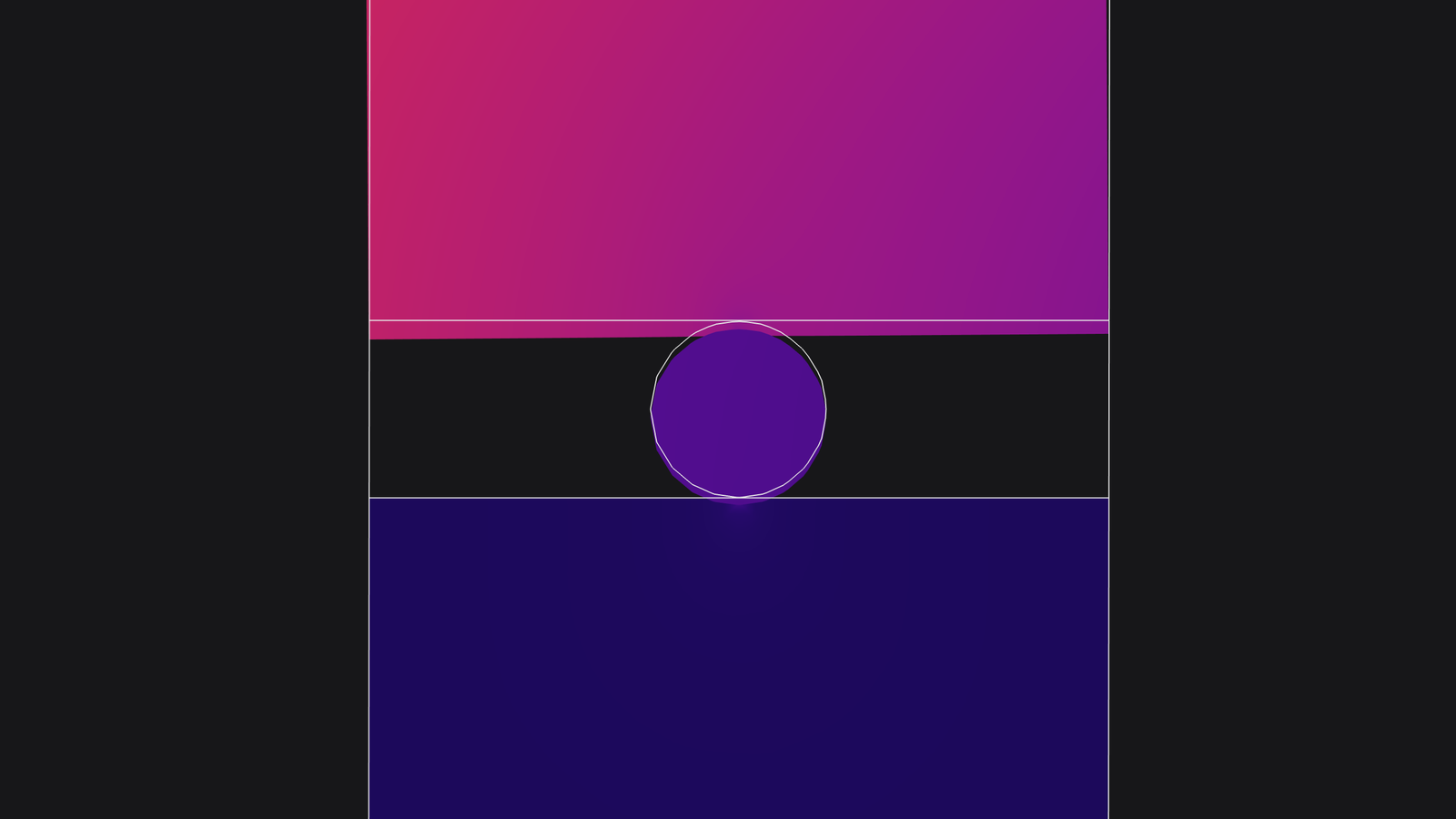

deformation behavior of the coal blocks
airflow patterns within the system
the interaction between mechanical forces and fluid dynamics

Through Fluid-Structure Interaction modeling, the simulation successfully captured the complex behavior of the system under operational conditions.

This provided the client with valuable insights into how mechanical and airflow forces interact during the pressing process.

Technologies Used

Multiphysics Modeling: Electrostatic, Fluid Dynamics and PDE Module coupling

Numerical Methods: Finite Element Analysis (FEA), Computational Fluid Dynamics (CFD)

Simulation Focus: Electrohydrodynamic airflow modeling, Ion transport dynamics, Momentum exchange between ions and gas molecules

Validation Method: Benchmark comparison with established electrohydrodynamic research

Technologies Used

Multiphysics Simulation Platform

COMSOL Multiphysics

Engineering Methodology

Fluid-Structure Interaction (FSI)

Solver Strategy

Segregated Multiphysics solver

Simulation Focus

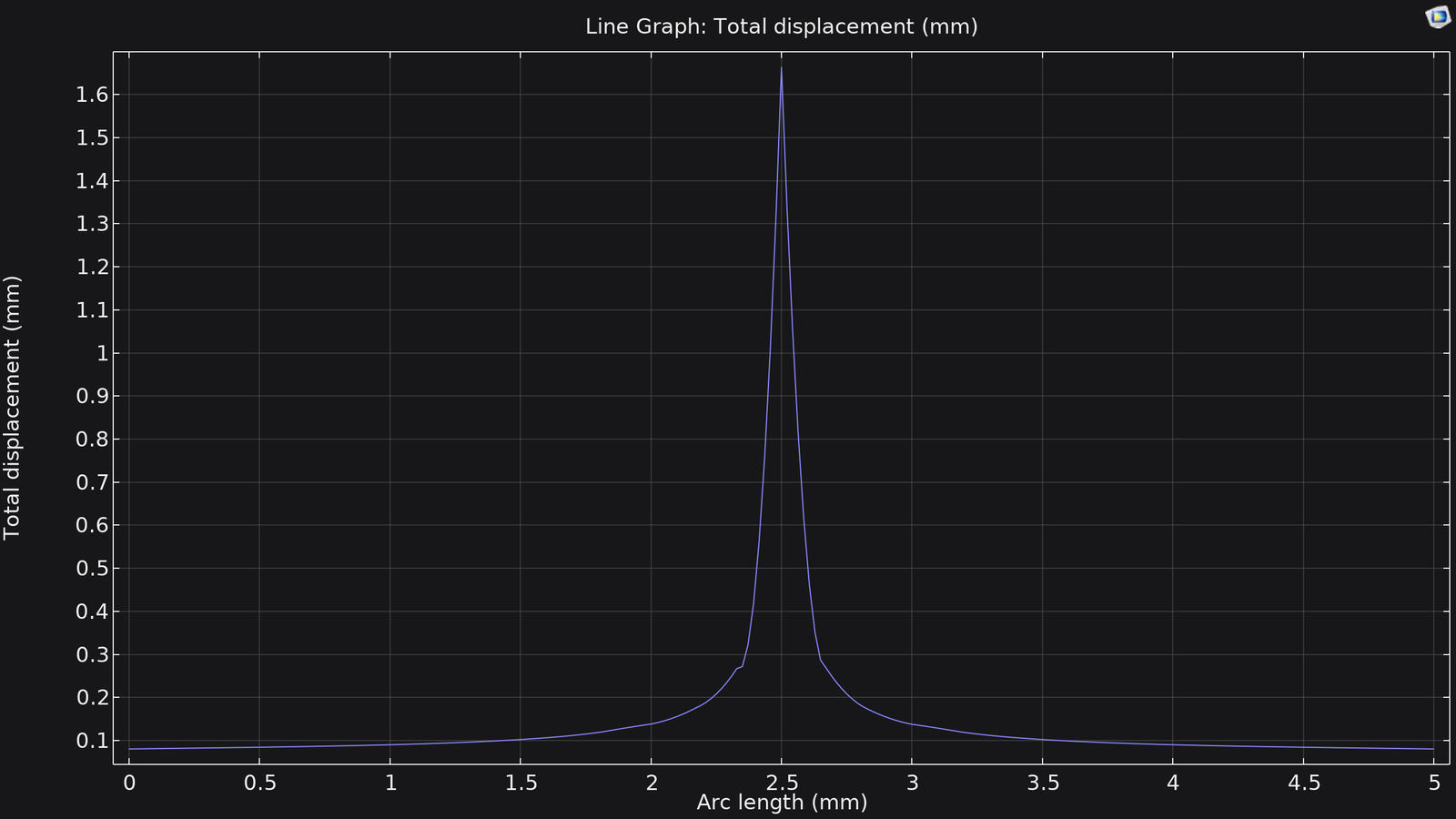

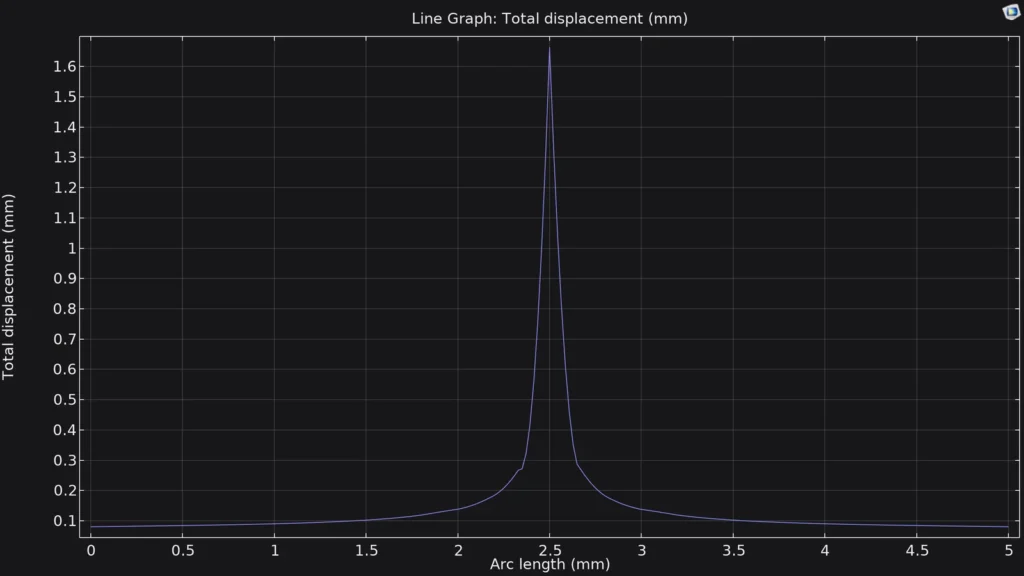

Mechanical compression, Contact interaction modeling, Airflow dynamics

Results & Business Impact

The project delivered important engineering insights into the operational behavior of the coal powder press machine.

Key outcomes included:

improved understanding of stress distribution during compression
visualization of airflow behavior within the press system
evaluation of the interaction between fluid forces and structural deformation
validation of Multiphysics simulation methodology for industrial machinery
enhanced confidence in the system’s operational performance

By leveraging Multiphysics simulation, the client was able to analyze complex machine behavior without relying solely on physical testing, reducing development time and engineering risk.

Key Takeaways

This project demonstrates AWJ Engineering’s expertise in Multiphysics simulation for industrial machinery and mechanical systems.

Through advanced modeling techniques, we help organizations:

analyze complex interactions between mechanical and fluid systems
optimize industrial equipment performance
identify potential operational challenges early in the design process
reduce costly trial-and-error prototyping

Our simulation-driven approach enables clients to make informed engineering decisions backed by detailed computational analysis.

Need Multiphysics Simulation for Industrial Equipment?

If you are developing industrial machinery, powder processing systems, or complex mechanical equipment, AWJ Engineering can help you analyze and optimize system performance using advanced Multiphysics simulations.
